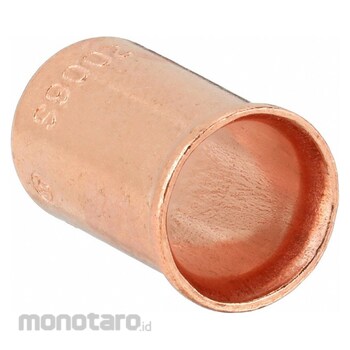

BUCHANAN Splice Cap Crimp Connector & Insulator
#Grup produk P109911344
Spesifikasi
| UNSPSC | 39121409 |
|---|---|
| Color | Copper |
| Connection Material | Copper |
| For Conductor Material | Copper |
| Max. Wire Combination (AWG) | (4) 12 |
| Max. Wire Size (AWG) | 10 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Min. Wire Combination (AWG) | (2) 18 |
| Min. Wire Size (AWG) | 18 |
| Overall Length (inch) | 0.43 |
| RohS Compliant | No |
| Standards | CSA C22.2 #188 Certified; UL 486C Listed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These connectors join two or more conductors and are ideal for long-term applications and those that vibrate. Insulators slide over the metal connector after crimping to protect the connection.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Splice Cap Connector Connection Material Copper For Conductor Material Copper Insulation Material None Maximum Operating Temperature 221 Degrees F Maximum Voltage 600 V Minimum Wire Combination (2) 18 AWG Maximum Wire Combination (4) 12 AWG Minimum Wire Size 18 AWG Maximum Wire Size 10 AWG RoHS Compliant No Standards CSA C22.2 #188 Certified UL 486C Listed Color Copper Overall Length 0.43 in Package Quantity 100Ulasan Produk
