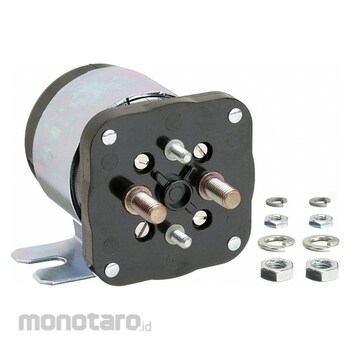

ESSEX WHITE RODGERS DC Power Solenoid
#Grup produk P109734426
Spesifikasi
| UNSPSC | 24101608 |
|---|---|
| AMPS | 200 |
| Coil Termination | #10-32 |
| Coil Type | Isolated |
| Coil Voltage DC (VDC) | 12 |
| Contact Form | SPNO |
| Contact Material | Silver Cadmium Oxide |
| Contact Termination (inch) | 5/16-24 |
| Duty cycle | Continuous |
| Enclosure | Water Resistant |
| Mounting Base | Standard Bracket |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
DC Power Solenoid Current Rating 200 A Contact Form SPST-NO Coil Voltage 12 V DC Duty Cycle Continuous Contact Termination 5/16 in-24 UNF-2A thread Coil Resistance 21 ohm Coil Termination #10-32 UNF-2A Thread Coil Type Isolated Contact Material Silver Alloy Height 2.9 in Length 3.69 in Maximum Operating Temperature 149 Degrees F Minimum Operating Temperature -40 Degrees F Mounting Base Standard Bracket Resistance Properties Dust Resistant Water Resistant Weight 16 ozUlasan Produk
