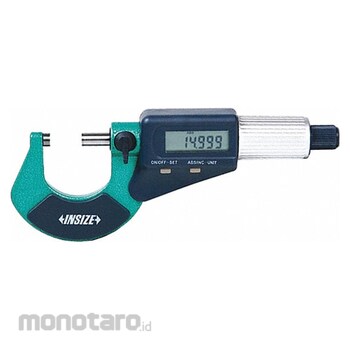

Insize Digital Outside Micrometer
#Grup produk P109666958
Spesifikasi
| UNSPSC | 41111601 |
|---|---|
| Anvil Material | Carbide |
| Anvil Shape | Flat |
| Brand | INSIZE |
| Coolant Resistant | No |
| Dimension Type | Inch/Metric |
| Display Type | LCD |
| IP Rating | Not Rated |
| Included Certification | Certificate of Inspection |
| Includes | Spherical Anvil |
| Includes Battery | Yes |
| Long Form Calibration Certificate | No |
| Maximum Measurement (inch) | 1 |
| Maximum Measurement (mm) | 25 |
| Measurement Accuracy (Ambient Temperature = 25°C) | ±2 |
| Minimum Measurement (inch) | 0 |
| Minimum Measurement (mm) | 0 |
| Operation Type | Digital |
| Range (inch) | 0 to 1 |
| Range (mm) | 0 to 25 |
| Resolution (inch) | 0.00005 |
| Resolution (mm) | 0.001 |
| Rotating Spindle (Yes/No) | Yes |
| SPC Output | No |
| Spindle Diameter (mm) | 6.5 |
| Spindle Material | Steel |
| Spindle Shape | Flat |
| Standards | Traceable to DKD |
| Thimble Type | Friction |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These digital outside micrometers measure the outside dimensions of raw materials, whole workpieces, finished parts, and features in production, QA, and inspection environments in metalworking and other industrial applications. When the workpiece being measured is held between the jaws of the micrometer, a measurement reading is shown on the digital display.
Feature
Digital Outside Micrometer Range 0 in to 1 in 0 to 25 mm Resolution 0.00005 in/0.001 mm Accuracy +/-2 micronm IP Rating Not Rated SPC Output No Long Form Calibration Certificate No Coolant Resistant No Dimension Type Inch/Metric Included Certification Certificate of Inspection Operation Type Digital Thimble Type Friction Anvil Material Carbide Anvil Shape Flat Display Type LCD Includes Spherical Anvil Includes Battery Yes Maximum Measurement - Inch 1 inUlasan Produk
