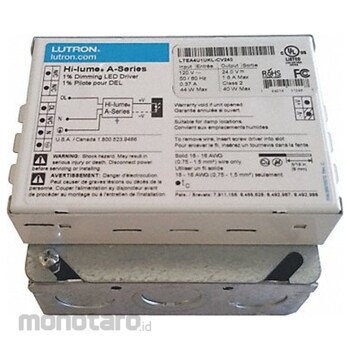

Lutron LED Driver for Fixture Array
#Grup produk P109629911
Spesifikasi
| UNSPSC | 39111801 |
|---|---|
| Ambient Temperature Range (°F) | 32 to 104 |
| Brand and Series | Hi-lume 1% EcoSystem |
| Case Form Factor | Compact |
| Dimming | Yes |
| Dimming Method | Proprietary |
| Dimming Range (%) | 100 to 1 |
| Dimming Type | Full Continuous Dimming |
| Driver Class | Class 2 |
| Driver Mounting Location | External from Fixture |
| Environmental Rating | Dry Location |
| For use with | LED Lighting |
| Height (inch) | 2-5/8 |
| Input Current (mA) | 170 to 370 |
| Input Power (W) | 47 |
| Input Voltage (V) | 120 to 277 AC |
| Intended LED Usage | LED Fixture Array |
| Length (inch) | 4-7/8 |
| Maximum Case Temperature (°F) | 149 |
| Ouput Constant | Constant Voltage |
| Output Current (A) | 1.60 DC |
| Output Power (W) | 5 to 40 |
| Output Technology | Fixed |
| Output voltage (V) | 24 DC |
| Power Factor | 0.95/0.99 |
| Profile | Standard Profile |
| Standards | ANSI C62.41 Category A; CAN ICES-005(A); FCC Part 15 Class A; ISO 9001.2008; RoHS Compliant; UL 8750 Listed |
| Total Harmonic Distortion (%) | Less than 20 |
| Width (inch) | 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These LED drivers provide a range of current outputs, which allows one driver to be used with a variety of light fixtures. Operators must add a resistor to the drivers to fine-tune their current output to suit the power requirements of particular fixtures.
Feature
Hi-lume 1 Percent EcoSystem LED Driver Intended LED Usage LED Fixture Array 120 to 277V AC Input Voltage 24V DC Output Voltage 170 to 370mA Input Current 1.60ADC Output Current 47 W Input Power 5 to 40W Power Output 4 7/8 in Length 4 in Width 2 5/8 in Height Case Form Factor Compact Standard Profile Class 2Ulasan Produk
