These Class I and II fixtures illuminate Division 2 hazardous locations where flammable gases or vapors and/or combustible dusts are normally confined or not present in ignitable concentrations. Their group ratings designate use in locations with specific types of gas, vapor, or dust. They prevent arcs or sparks within the fixture from igniting gases, vapors, or dusts on or near the fixture.
Flammable gases and vapors are Class I hazards commonly found in petroleum refineries, fuel dispensaries, sewage treatment plants, and processes using chemicals, paints, coatings, or sealants. Combustible dusts are Class II hazards commonly found in pharmaceutical factories, coal-handling plants, grain elevators, and plants processing flour, feed, or powder.

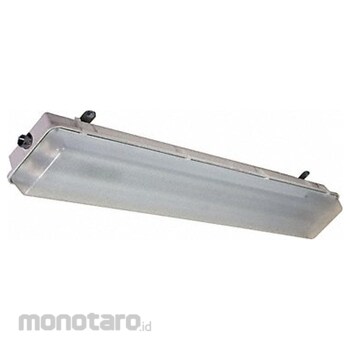

LARSON ELECTRONICS LLC 2ft. Linear Fluorescent Hazardous Location Light
#Grup produk P109586218
Spesifikasi
| UNSPSC | 39111901 |
|---|---|
| Ambient Temperature Range (°F) | -4 to 158 |
| BAA Compliant | Yes |
| CA Title 24 Compliant | Yes |
| Color Temperature (Kelvin) | 4100 |
| Dimmable | No |
| Emergency Battery Backup | No |
| Fixture Ballast Type | Electronic |
| Fixture Rated Life (hour) | 20000 |
| Fixture Voltage (V) | 120 to 270 AC |
| For Bulb Shape | T5HO |
| For Bulb Type | Fluorescent |
| For Number of Bulbs | 2 |
| Housing Finish | Plastic |
| Housing Material | Polyester |
| Includes | (2) 1/2inch or 3/4inch Hubs; Wiring Hub: 1/2inch or 3/4inch Threaded NPT Hubs |
| Ingress Protection Rating | 67 |
| Lamp Type | Fluorescent |
| Lamp Wattage (W) | 17 |
| Lens Material | Acrylic |
| Lighting Certification | Unrated |
| Lighting Technology | Fluorescent |
| Lumens (lm) | 6600 |
| Lumens per Watt (lm/W) | 91 |
| Maximum Ambient Temperature (°F) | 158 |
| Maximum Fixture Wattage (W) | 72 |
| Minimum Ambient Temperature (°F) | -4 |
| Mounting Location | Pendant |
| Mounting Style | Pendant |
| Number of Ballasts | 1 |
| Number of Bulbs | 2 |
| Overall Height (inch) | 5-1/2 |
| Overall Length (inch) | 25-7/8 |
| Overall Width (inch) | 7-1/4 |
| Safety Rating | Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G |
| Standards | Meets US Coast Guard Specifications |
| Temperature Code | T4 |
| UL/CSA/ETL Listed | cUL Listed for Canada; UL 1598A Listed; UL 844 Listed; UL Listed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Hazardous Location Lighting Fixtures Hazardous Location Fixture Type Fluorescent Lamp Type Lamp Quantity 2 Bulb Designation T5HO Lamp Watts 17 W Fixture Wattage 48 Voltage 120/277V AC Wide Area Beam Spread Class 1 Div 2 T5HO Efficiency Yes Lamp Included Ambient Temp Range -4 Degrees to 158 Degrees F Housing Material Polyester Plastic Housing Finish Lens Material Acrylic Finish White Pendant Mounting Length 25 7/8 in Height 5 27/64 inUlasan Produk
