Lineup of large capacity and robust models
High-viscosity, large-capacity stirring is possible by using a strong magnet and induction motor.
Feedback control using a tacho generator allows stable rotation from low to high speeds.
Achieves stable rotation even in the low rotation range.
You can set the rotation speed proportional to the scale using the analog knob.
Support rod options are available.
A special metal fitting can be attached to the back, and it can be used as a stand in combination with a support rod.
Phenolic resin top plate features: Excellent oil and acid resistance.
*The stirring capacity and rotation speed are reference values when the target is water.
*A stirrer is not included with the rental machine.
*This product does not include a rotor. Please be prepared before using.

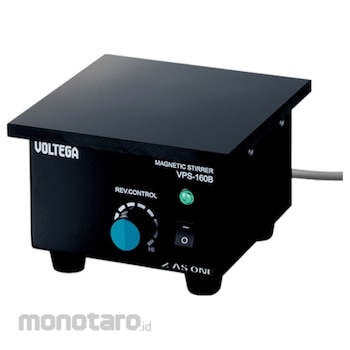

AS ONE Power Stirrer
#Grup produk P109529602
Spesifikasi
| Type | Analog |
|---|---|
| Material | Main body/SPCC (acrylic paint), top plate/phenolic resin |
| Motor | induction motor |
| Variable Rotation Speed Method | Feedback control using tacho generator |
| Top Plate Size (mm) | 160x160 |
| Rotation Speed (rpm) | 60-1350rpm |
| Body Size (mm) | 160x160 (171)x111 (dimensions in parentheses include protrusions) |
| Magnet/Strength (T) | Neodymium/0.42 |
| Maximum Power Consumption (W) | 20W |
| Motor Power (W) | 3 |
| Power Supply | AC100V 50/60Hz, 2.5m 3P plug |
| Reference | Rotor (1-4206-01-13) |
| Stirring capacity (L) | 10 |
