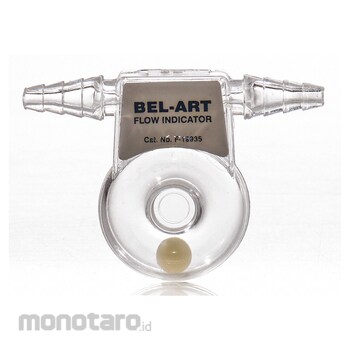

SP SCIENCEWARE Window-Style Sight Glass Flow Indicators
#Grup produk P109448671
Spesifikasi
| UNSPSC | 41112501 |
|---|---|
| Body Material | Polycarbonate |
| Connection Size (inch) | 3/8 |
| Connection Type | Barbed |
| Flow Direction | horizontal, vertical |
| Fluid Connection (inch) | 3/8 Barbed |
| For Media Type | Water |
| Indicator Type | Ball |
| Manufacturer Part Number | H19935-0000 |
| Max. Operating Pressure (psig) | 10 |
| Maximum Media Temperature (°F) | 175 |
| Media Temperature Range (°F) | 40 to 175 |
| Minimum Media Temperature (°F) | 40 |
| Overall Length (inch) | 2.3 |
| Overall Width (inch) | 1.2 |
| Wetted Material | Nylon; Polycarbonate |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flow sights with indicators show liquids moving through a system. These inline devices use impellers or rotors to visually represent the flow of media.
Feature
Flow Indicator Indicator Type Ball Body Material Polycarbonate Connection Size 3/8 in Connection Type Barbed Operating Pressure - Maximum 10 psig Sight Diameter Not Applicable Number of Windows Not Applicable Flow Direction Horizontal Vertical Media Temperature - Minimum 40 Degrees F Media Temperature -Maximum 175 Degrees F Seal Material Not Applicable For Media Type Water Overall Length 2.3 in Overall Width 1.2 in Wetted Material Nylon PolycarbonateUlasan Produk
