SCHAEFER Kipas Angin Berdiri Industrial
#Grup produk P109424033
Spesifikasi
| UNSPSC | 40101602 |
|---|---|
| AMPS | 1.5/1.3/1 |
| Air Flow (CFM) | 1,400/1,800/2,200 |
| Air Velocity at 20ft (fpm) | 190/270/310 |
| Assembly Required | Yes |
| Bearing Type | Sealed Ball |
| Blade Diameter (inch) | 18 |
| Blade Material | Steel |
| Depth (inch) | 15 |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Cord Length (ft) | 25 |
| Fan Housing Material | Steel |
| Fan Mounting Location | Pedestal |
| Frequency (Hz) | 60 |
| Guard Material | Steel |
| Height (inch) | 42 |
| Includes | (1) Extra Nozzle; (2) Plugs; 10 gal Tank; 5 hr Run Time; High Pressure Water Pump; Power Cut Off Tip Switch |
| Maximum Ambient Temperature (°F) | 107 |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor HP (HP) | 1/10 |
| Motor Insulation | Class A |
| Motor Type | Permanent Split Capacitor |
| NEMA Plug Configuration | 5-15P with GFCI |
| Number of Blades | 3 |
| Number of Conductors | 3 |
| Number of Speeds | 3 |
| Oscillation | Non-Oscillating |
| Phase | 1 |
| Product Type | Industrial Misting Fan |
| Rotation Speed (rpm) | 1000/1400/1570 |
| Shaft Dia. (inch) | 1/2 |
| Sound Level (dBA) | 60/52 |
| Standards | UL507 Motor |
| Thermal Protection | Auto |
| Voltage (V AC) | 115 |
| Wattage | 130 |
| Wheeled Base | Stationary |
| Width (inch) | 24 |
| Wire Guard Finish | White Powder Coated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

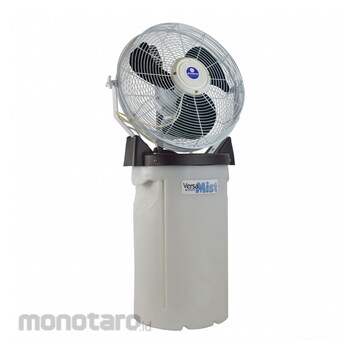

Industrial pedestal misting fans feature a misting hub that connects to a water source for adding moisture to the air for rapid cooling. They're used to supply a cooling mist that helps people avoid heat stress at amusement parks and other hot locations where water won't cause a slipping hazard or damage surrounding areas or equipment. These air circulators have a totally enclosed motor to keep out water and debris.
Feature
Industrial Misting Fan Blade Dia 18 in Stationary Non-Oscillating 3 Speeds Voltage 115V AC 1 Phase CFM High 2200 CFM Low 1400 Air Velocity @ 20 ft 190/270/310 fpm Motor HP 1/10 hp Motor RPM 1000/1400/1570 Operating Amps 1.5/1.3/1 Fan Mounting Location Pedestal Fan Accessory Style Misting Sound Level 60/52 dBA Max Ambient Temp 107 Degrees F Hz 60 Hz Watts 130 Motor Type Permanent Split Capacitor Drive Type Direct Drive Outside Dia 20 in Height 42 in Width 24 inUlasan Produk
