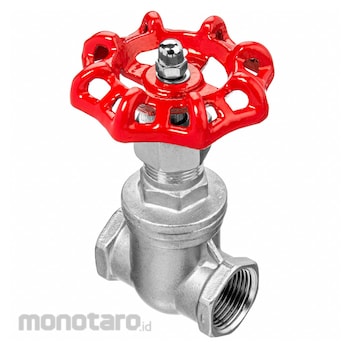

USA SEALING Gate Valves
#Grup produk P109417972
Spesifikasi
| UNSPSC | 40141613 |
|---|---|
| Body Material - Valves | 304 Stainless Steel |
| Bonnet Style | Threaded |
| Connection Type | FNPTxFNPT |
| Handle Material | Cast Iron |
| Handle Type | Wheel |
| Inlet to Outlet Length (inch) | 2-7/32 |
| Max. Water Pressure - CWP | 200 |
| Max. Working Steam Pressure - WSP | 200 |
| Maximum Valve Fluid Temperature (°F) | 356 |
| Pipe Size - Valves (inch) | 1/2 |
| Seal Material | PTFE |
| Stem Material | 304 Stainless Steel |
| Top of Handle to Inlet Center (inch) | 3-13/16 |
| Valve Class | Class 200 |
| Valve Stem Type | Non-Rising |
| Wedge Material | 316 Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Gate Valve Valve Class Class 200 Body Material - Valves 304 Stainless Steel Connection Type FNPT x FNPT Pipe Size - Valves 1/2 in Max Water Pressure - CWP 200 psi Max Working Steam Pressure - WSP 200 psi Valve Max Fluid Temp 356 Degrees F Valve Stem Type Non-Rising Top of Handle to Inlet Center 3 13/16 in Inlet to Outlet Length 2 7/32 in Stem Material 304 Stainless Steel Bonnet Style Threaded Wedge Material 316 Stainless Steel Seal Material PTFE Handle Material Cast IronUlasan Produk
