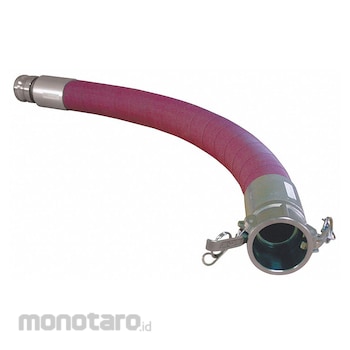

NOVAFLEX Food & Beverage Hose Assemblies
#Grup produk P109416274
Spesifikasi
| UNSPSC | 40142007 |
|---|---|
| Bend Radius (inch) | 5 |
| Compatible Chemicals | Beverage |
| Hose Color | Red |
| Hose Configuration | Coupled Assembly |
| Hose Cover Material | EPDM |
| Hose Fitting A Material | 316 Stainless Steel |
| Hose Fitting A Size (inch) | 1-1/2 |
| Hose Fitting A Type | Cam and Groove C |
| Hose Fitting B Material | 316 Stainless Steel |
| Hose Fitting B Size (inch) | 1-1/2 |
| Hose Fitting B Type | Cam and Groove E |
| Hose Inside Dia. (inch) | 1-1/2 |
| Hose Length (ft) | 20 |
| Hose Outside Dia. (inch) | 2 |
| Hose Tube Material | Chlorobutyl |
| Max. Working Pressure @ 70 F | 250 |
| Safety Factor | 4:1 |
| Standards | 3-A; FDA; USDA |
| Temperature Range (°F) | -40 to 240 |
| Vacuum Rating (in.Hg) | 28 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Class 3000 socket weld (SW) fittings connect with medium- to high-pressure (300-3000 psi) pipe. Socket weld fittings attach by inserting pipe into the recessed area of the fitting. The pipe and the fitting are square cut for easy fillet welding and installation. These fittings are welded to the same thickness unthreaded pipe.
Feature
Beverage Hose Hose Inside Dia 1 1/2 in Hose Outside Dia 2 in Hose Length 20 ft Hose Tube Material Chlorobutyl Hose Cover Material EPDM Hose Reinforcement Type Helix Hose Color Red Vacuum Rating 28.00 in Hg Max Working Pressure @ 70 F 250 psi Safety Factor 4 1 Temp Range -40 Degrees to 240 Degrees F Standards 3-A FDA USDA Bend Radius 5 in Hose Configuration Coupled Assembly Hose Fitting A Size 1 1/2 in Hose Fitting B Size 1 1/2 in Hose Fitting A Material 316 Stainless SteelUlasan Produk
