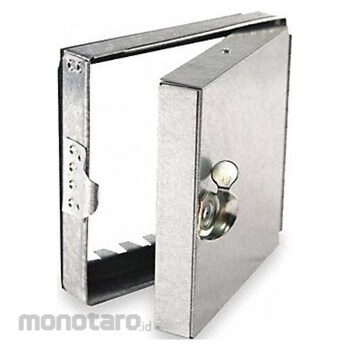

DAYTON Duct Access Door
#Grup produk P109409539
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40101505 |
|---|---|
| Door Height (inch) | 6 |
| Door Shape | Square |
| Door Thickness (inch) | 1 3/4 |
| Door Width (inch) | 6 |
| Finish | Galvanized |
| For Duct Shape | Rectangular |
| Insulation Material | Fiberglass |
| Latch Type | Single Cam |
| Material | Steel |
| Material Thickness (ga) | 24 |
| Maximum Pressure Rating (in WC) | 4 |
| Mounting Style | Tab In |
| Observation Port Height (inch) | 6 |
| Observation Port Width (inch) | 6 |
| Rough Opening Height (inch) | 5 1/2 |
| Rough Opening Width (inch) | 5 1/2 |
| Standards | NFPA 80 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flat access doors install into rectangular ducting and provide an access point for the maintenance and repair of the HVAC system. Hinged door units feature a single cam-lock that secures the door during regular operation. The doors on dual cam-lock units do not have hinges and can be completely removed for easier access.
Feature
Duct Access Door Door Height 6 in Door Shape Square Door Thickness 1 3/4 in Door Width 6 in Fire Rating Not Rated For Nominal Duct Diameter Not Applicable Hinge Style Tab-In Insulation Material Fiberglass Latch Type Single Cam Material Thickness 24 ga Maximum Temperature Rating Not Applicable Mounting Stud Length Not Applicable Number of Mounting Stud Not Applicable Observation Port Height 6 in Observation Port Material Steel Observation Port Width 6 inUlasan Produk
