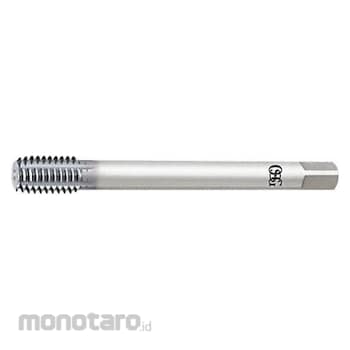

OSG Thread-Forming STI Tap
#Grup produk P109330673
Kondisi Barang:
Spesifikasi
| UNSPSC | 27112806 |
|---|---|
| 55% Thread Drill Size (inch) | 15/16 |
| 65% Thread Drill Size (mm) | 2.3 |
| 75% Thread Drill Size (mm) | 2.2 |
| Class of Fit | 3B |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | No |
| Features | 40-50% Less Machining Torque; Fluteless Forming Tap |
| Material Grade - Machining | 16260 |
| Measurement System | Pipe |
| Overall Length (inch) | 2-33/64 |
| Primary Material Application | Aluminium, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application ISO Code | H; M; N; P |
| Secondary Material Application | Hardened Steel; Nickel; Titanium |
| Secondary Material Application ISO Code | H; S |
| Shank Diameter (inch) | 1/8 |
| Shank Length (inch) | 1-45/64 |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size (inch) | 0.109 |
| Tap Chamfer | Modified Bottoming; Semi-Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Thread Forming |
| Tap Thread Size | #4-40 |
| Thread Direction | Right Hand |
| Thread Length (inch) | 23/64 |
| Thread Limit | H2 |
| Thread Size | #4-40 |
| Thread Standard | UNC |
| Thread per Inch | 40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S. The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. Cobalt taps are harder and provide more wear resistance when tapping hard materials at high speeds than high-speed steel taps.
Feature
Screw Thread Insert STI Tap Thread Size #4-40 UNC Overall Length 2 33/64 in Cobalt TiCN Right Hand Thread Length 23/64 in Tap Chamfer Modified Bottoming Semi-Bottoming Thread Limit H2 Class of Fit 3B Number of Flutes 0Dokumentasi Produk
