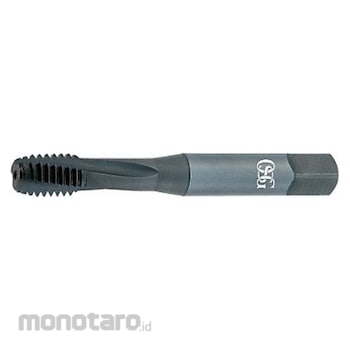

OSG High-Performance Spiral-Flute Tap for Nickel & Titanium
#Grup produk P109330150
Kondisi Barang:
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| 75% Thread Drill Size | 11.4 |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size (inch) | 0.4480; 0.4513; 0.4545; 0.4578; 0.4610 |
| Extended Neck | Yes |
| Helix Angle (°) | 10 |
| Measurement System | Fractional Inch |
| Number of Flutes | 3 |
| Overall Length (inch) | 3-11/32 |
| Primary Material Application | Nickel; Titanium |
| Primary Material Application ISO Code | S |
| Secondary Material Application | Hardened Steel; Nickel; Stainless Steel; Titanium |
| Secondary Material Application ISO Code | H; M; S3 |
| Shank Diameter (inch) | 23/64 |
| Shank Length (inch) | 1-13/32 |
| Shank Type - Machining | Straight |
| Square Size (inch) | 0.274 |
| Standards | ANSI |
| Tap Chamfer | Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/2\"-20 |
| Thread Direction | Right Hand |
| Thread Length (inch) | 9/16 |
| Thread Limit | H5 |
| Thread Limit / Class of Fit | H5 |
| Thread Size | 1/2\"-20 |
| Thread Standard | UNF |
| Thread per Inch | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These taps are designed for tapping nickel. They have a black-oxide finish that retains lubricants to improve the taps' wear resistance and chip flow.
Feature
Spiral Flute Tap Thread Size 1/2 In.-20 UNF Overall Length 3 11/32 in Powdered Metal Black Oxide Thread Length 9/16 in 75 Percent Thread Drill Size 11.40 Thread Limit H5 Thread Direction Right Hand Number of Flutes 3Dokumentasi Produk
