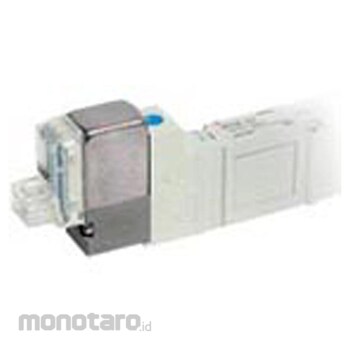

SMC 5-port Solenoid Valve SY5120-V Series
#Grup produk P109053552
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient and Flowing Fluid Temperature (°C) | -10 to 50 (no freezing) |
|---|---|
| Rated Voltage (V) | DC6 |
| Bracket | With side bracket |
| Flow Rate Characteristics C (dm³)/(s.bar)) {4/2 → 5/3 (A/B → EA/EB)} | 2 |
| Internal Pilot Valve Operating Pressure Range (MPa) | 0.15 - 0.7 |
| Lamp/Surge Voltage Protection Circuit | With surge voltage protection circuit (non-polar type) |
| Lubrication | Unnecessary |
| Manual Operation Type | Push turn lock type hand operation type |
| Number of Ports | 5 |
| Pipe Connection Diameter | Φ6 one-touch pipe fitting |
| Suitable fluid | Air |
| Switching Method | 2 position single |
| Type Of Thread | Rc |
| Type of Lead Wire Extraction | L-shaped plug connector (without connector) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Valve size can be reduced by increasing the flow rate.Contribute to energy saving and space saving.
- Power consumption: 0.1W (with power saving circuit), 0.35W (standard)
- 200 million times (metal seal), 70 million times (elasticity seal)
- Compatible with plug -in subplate.
- Plug -in metal base (IP40)/plug -in -connector connection base (IP67)
- Manijud type: SS5Y3, SS5Y5, SS5Y7
