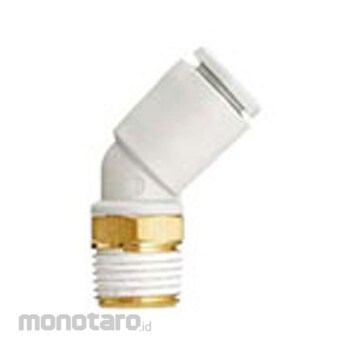

SMC 45° Elbow Union KQ2K with Sealant Metric Size
#Grup produk P109047339
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Material (screw) | Brass + electroless nickel plating |
| Connector Thread | R1/8 |
| Dimension A (mm) | 22.3 |
| Dimension d1 (Φmm) | 8.2 |
| Dimension L1 (mm) | 14.4 |
| Dimension L2 (mm) | 12.7 |
| Dimensions d2 (mm) | 10 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 3.4 (Urethane) 3.4 |
| Pipe Connection Diameter | 1/8 |
| Seal | (Screw part) With sealant |
| Sealing Type | (Male screw) With sealant |
| Shape | 45 ° elbow union |
| Suitable Tube Outer Diameter (Φmm) | 4 |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | RRc |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details- Dimension φD1 means the maximum diameter.
- Dimension A is the reference dimension after screwing R screw
Use
Used for 45 -degree direction piping from the screw. An intermediate model of Half Union and Elvo Union.Ulasan Produk
