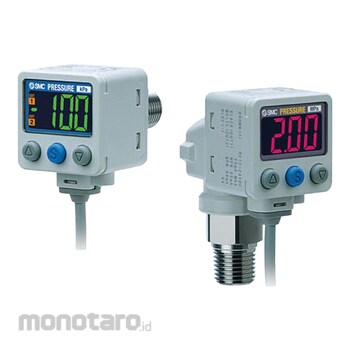

SMC 2-color Display Type Digital Pressure Switch/for General-Purpose Fluids for Positive Pressure ISE80-C01 Series
#Grup produk P109037758
Kondisi Barang:
Authorized Partner
Spesifikasi
| Rated Pressure Range (MPa) | -0.1 - 1 |
|---|---|
| Withstand Pressure (MPa) | 2 |
| Current Consumption (mA) | 45 or less |
| Display unit | (M) Fixed SI unit |
| Input/Output | NPN open collector 2 output |
| Output specifications | (A) NPN open collector 2 output |
| Pipe Direction | (L) Downward piping |
| Power Supply Voltage (V) | DC12-24 ± 10%, Ripple (pp) 10% or less (with paradoxical protection) |
| Pressure Setting Range (MPa) | -0.105 - 1.1 |
| Repeatability | ± 0.2% FS ± 1 digit or less |
| Suitable fluid | Fluid that does not corrode SUS630 and SUS304 |
| Type of Piping | (C01) Rc 1/8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Adapt to a wide range of fluids with stainless steel diaphragm.IP65
ROHS compatible.
Low leak. VCR, Swagelok compatible joints can be selected.
Back piping, downward piping.
