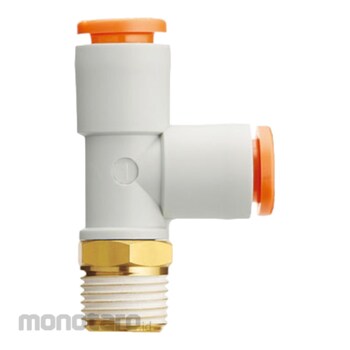

SMC Service Tee Union KQ2Y without Sealant Inch Size
#Grup produk P108997754
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension L1 (mm) | 16.5 |
| Dimension d1 (Φmm) | 11.1 |
| Dimensions d2 (mm) | 10 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 14 (Urethane) 12.4 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Service tee union |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | NPT |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension A is the reference dimension after screwing in NPT screws, screws in R screws* Dimension φD1 means the maximum diameter.
Use
Used for the same direction from the screw and 90 degree direction piping.Dokumentasi Produk
