SMC Service Tee Union
#Grup produk P108997596
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color (Body) | Black |
|---|---|
| Material (Main Unit) | C3604BD, PBT, PP |
| Operating Vacuum Pressure (kPa) | -100 |
| Operating Temperature Range (°C) | Air: -5-60 / Wed: 0-40 (without freezing) |
| Dimension A (mm) | 39 |
| Dimension d1 (Φmm) | 12.8 (maximum diameter) |
| Dimension H (mm) | 10 (opposite the hexagon) |
| Dimension L1 (mm) | 20 |
| Dimension L2 (mm) | 23 |
| Dimensions d2 (mm) | 10 phi |
| Dimensions m (mm) | 17 |
| Effective Section Area (mm²) | Nylon: 13.4 / Urethane: 10.6 |
| Fluid | Air / general industrial water |
| Maximum Operating Pressure (MPa) | 1 |
| Screw Dimensions | R1/8 |
| Shape | Service tee union |
| Suitable Tube Outer Diameter (Φmm) | 6 |
| Type Of Thread | R |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

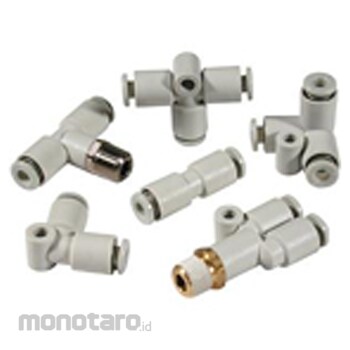

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
It can be used for both nylon, soft nylon, and polyurethane. The piping man -hours are greatly reduced and the space is saved. Standard specification with sealDokumentasi Produk
