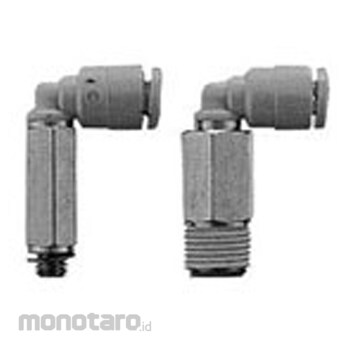

SMC Long Elbow Union
#Grup produk P108964853
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color (Body) | White system |
|---|---|
| Material (Main Unit) | SUS303, C3604BD, PBT |
| Operating Vacuum Pressure (kPa) | -100 |
| Operating Temperature Range (°C) | Air: -5-60 / Wed: 0-40 (without freezing) |
| Suitable Tube Outer Diameter (Φmm) | 6 |
| Type Of Thread | R |
| Dimension A (mm) | 30.5 |
| Dimension H (mm) | 10 (opposite the hexagon) |
| Dimension L1 (mm) | 17.8 |
| Dimension L2 (mm) | 28.7 |
| Dimensions d (mm) | Φ11.6 (maximum diameter) |
| Dimensions m (mm) | 13.5 |
| Effective Section Area (mm²) | Nylon: 9 / Urethane: 9 |
| Fluid | Air / general industrial water |
| Maximum Operating Pressure (MPa) | 1 |
| Screw Dimensions | R1/8 |
| Shape | Long elbow union |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsDokumentasi Produk
