SMC Female Union
#Grup produk P108943179
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White release bush: Light gray |
|---|---|
| Material | Body: C3604BD, PBT, PP, Driving half: C3604BD (screw part), Chuck: SUS304, Guide: SUS304, C3604BD, POM, Collet, Release Bush: POM, Packing, O-ring: NBR, Gasket: SUS304, NBR |
| Operating Vacuum Pressure (kPa) | -100 |
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | Rc1/2 |
| Dimension H (mm) | 24 (opposite the hexagon) |
| Dimension L1 (mm) | 41 |
| Dimension L2 (mm) | 18 |
| Dimensions d2 (mm) | 19 phi (maximum diameter) |
| Dimensions m (mm) | 22 |
| Effective Section Area (mm²) | Nylon: 58.3, Urethane: 46.1 |
| Maximum Operating Pressure (MPa) | 1 |
| Screws | JIS B0203 |
| Suitable Tube Material | Nylon / Polyurethane |
| Suitable Tube Outer Diameter (Φmm) | 12 |
| Suitable fluid | Air, general industrial water |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

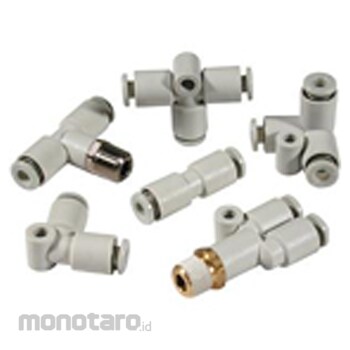

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Used for piping from the screw part such as pressure gauge.Dokumentasi Produk
