SMC Elbow KQL
#Grup produk P108892015
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: Black Release Bush: Blue |
|---|---|
| Material | Body: C3604, PBT, PP Driving half: C3604 (screw part) Chuck: SUS304 Guide: SUS304, C3604, PBT Collet, Release bush: POM packing, O-ring: NBR Gasket: SUS304, NBR |
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | R1/8 |
| Dimension A (mm) | 32 |
| Dimension H (mm) | 17 (opposite the hexagon) |
| Dimension L1 (mm) | 26.5 |
| Dimension L2 (mm) | 27 |
| Dimension d1 (Φmm) | 18.5 (maximum diameter) |
| Dimensions d2 (mm) | 17 phi |
| Dimensions m (mm) | 21 |
| Effective Section Area (mm²) | Nylon: 21.6, Urethane: 14.9 |
| Suitable Tube Material | Nylon, Polyurethane |
| Suitable Tube Outer Diameter (Φmm) | 10 |
| Suitable fluid | Air / water |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

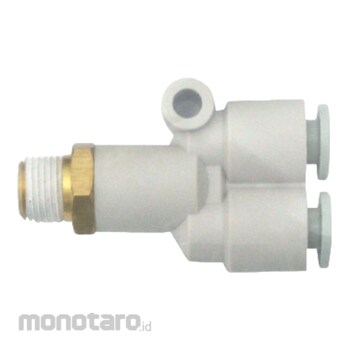

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Used for piping in a right angle direction from the screw. The most common model.Ulasan Produk
