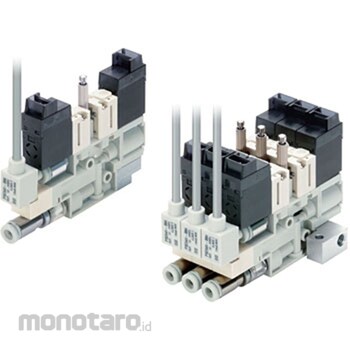

SMC ZA - Small Vacuum Unit/Single Unit ZA1051
#Grup produk P108876132
Kondisi Barang:
Authorized Partner
Spesifikasi
| Type | Non-locking push type (tool required) / Latching type: Push-lock type (tool required) |
|---|---|
| Voltage (V) | (5) DC24 |
| Function | (-) Standard type (DC is 1W) |
| Lead Wire (m) | 0.3 |
| Manual | (-) Non-lock push type |
| Manual Operation Type | (-) Non-lock push type |
| Nozzle diameter (mm) | (05) Φ0.5 |
| Pneumatic Supply (P) Port | (5) Φ4 (elbow) |
| Power Supply Voltage (V) | DC24 |
| Pressure Sensor | (P1) With pressure sensor (0 to -101 kPa accuracy +/- 2% FS) |
| Solenoid Valve Combination | (K1) For supply: Normal close For destruction: Normal close |
| Suction Filter | (-) No suction filter |
| Type of Lead Wire Extraction | (L) L-shaped plug connector / lamp with surge voltage protection circuit |
| Vacuum (V) Port | (2) Φ4 (straight) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Overall width: 9.9mm, total length: 72.9mm, total height: 52.5mm, mass: 50gCan be installed
Improvement of responsibilities by shortening the length of tube to the pad
Manicized can be converted
