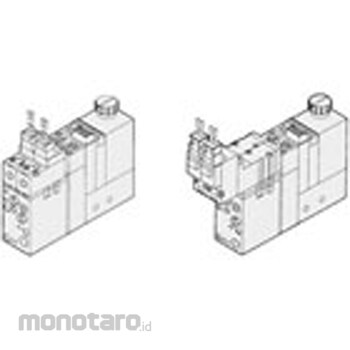

SMC Vacuum Unit ZX107
#Grup produk P108873171
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ejector Exhaust Type | With silencer |
|---|---|
| Ejector Unit Nozzle Diameter (Φmm) | 0.7 |
| Fracture Flow Adjustment Needle/Bracket | A: With lock nut, with bracket A |
| Lamp/Surge Voltage Protection Circuit | With lamp / surge voltage protection circuit |
| Made-to-order Specifications | Standard |
| Manual Operation Type | Non-lock push type |
| PV/V Port Connection Size | M5X0.8 |
| Pilot Valve | DC: 1W type (with lamp: 1.05W); AC type |
| Solenoid Valve Rated Voltage (V) | DC24 |
| Supply Valve/Release Valve Combination | Supply valve: Solenoid valve NC (VJ114); Release valve: Solenoid valve NC (VJ114) |
| Type of Lead Wire Extraction | L-type plug connector lead wire length 0.3m |
| Vacuum Switch Lead Wire Extraction | Grommet type lead wire length 0.6m or none |
| Vacuum Switch Unit/Filter Unit | Vacuum pressure switch (for general use) (ZSE2) (NPN specification), with suction filter |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Compatible with ejector system/vacuum pump systemRequired functions and combinations by module design are possible
Ideal for electronic parts up to 100g and small precision parts
Compatible with ejector system/vacuum pump system
Manicized can be converted
