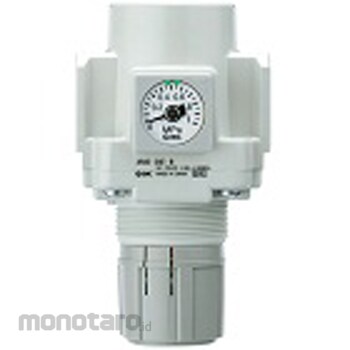

SMC Regulator with BackFlow Function AR20K Series
#Grup produk P108818800
Kondisi Barang:
Authorized Partner
Spesifikasi
| Overall Length (mm) | 94 |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60 (no freezing) |
| Assured Pressure Resistance (MPa) | 1.5 |
| Body Size | 20 |
| Exhaust Type | Relief type |
| Flow Direction | Left → right |
| Function | With backflow function |
| Handle | Upward |
| Maximum Operating Pressure (MPa) | 1 |
| Mounting | With bracket |
| Pipe Connection Diameter | 1/4 |
| Pressure Gauge | Round pressure gauge (with limit indicator) |
| Pressure Gauge Connection Size | 1/8 |
| Pressure Setting Range (MPa) | 0.05 - 0.85 |
| Set Pressure Unit | MPa |
| Setting Pressure (MPa) | 0.05 - 0.85 |
| Suitable fluid | Air |
| Type Of Thread | Rc |
| Type of Sign | With bracket |
| Type of Terminal Fitting | With bracket |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
A regulator with a backflow function with a built -in function to exhale the air pressure on the exit side quickly.Dokumentasi Produk
