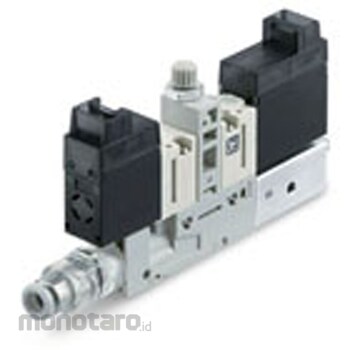

SMC Compact Vacuum Unit Vacuum Pump System ZB041
#Grup produk P108704729
Kondisi Barang:
Authorized Partner
Spesifikasi
| Rated Voltage (V) | DC24 |
|---|---|
| Body Type | Single item |
| Exhaust Type | Silencer exhaust (individual exhaust) |
| Manual Operation Type | Non-lock push type |
| Nozzle diameter (mm) | 0.4 |
| Pressure Sensor/Vacuum Pressure Switch Specification | Vacuum pressure switch; pressure range: 0 to -101 kPa; NPN2 output SI unit fixed |
| Option | None |
| Supply Valve/Release Valve Combination | Supply valve: latching (+common); release valve: normally closed |
| Type of Lead Wire Extraction | L-shaped plug connector No connector |
| Vacuum (V) Port | Elbow Φ4 one-touch fitting mm size |
| Vacuum Pressure Switch | Lead wire with connector Lead wire length with connector cover 2m |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size, material and color for detailsFeature
Compatible with ejector system/vacuum pump systemHigh -speed response: A response 5ms, a true vacant response time 28ms
Energy saving: air consumption reduced by 17%and empty pressure was improved 21%
Small / lightweight: 46g
With a vacuum pressure switch, can be copied up to 10 units at the same time
Dokumentasi Produk
