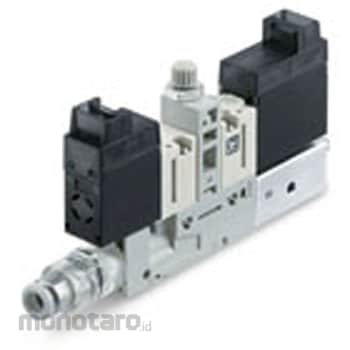

SMC Compact Vacuum Unit Ejector System ZB Series ZB0511
#Grup produk P108704686
Kondisi Barang:
Authorized Partner
Spesifikasi
| Rated Voltage (V) | (5) DC24 |
|---|---|
| Body Type | (1) Single unit (PV PD common port) |
| Exhaust Type | (1) Silencer exhaust (individual exhaust) |
| Lead Wire | (-) With connector No lead wire (No need to specify for pressure sensor) |
| Manual Operation Type | (-) Non-lock push type |
| Nozzle diameter (mm) | 0.5 |
| Option | None |
| Pressure Sensor | (EBM) Vacuum pressure switch [0 to -101, PNP2 output (SI unit fixed)] |
| Pressure Sensor/Vacuum Pressure Switch Specification | Vacuum pressure switch; pressure range: 0 to -101 kPa; PNP2 output SI unit fixed |
| Supply Valve/Release Valve Combination | (K1) Supply valve (normally closed) break valve (normal rose) |
| Type of Lead Wire Extraction | (L) L-shaped plug connector / with lead wire |
| Vacuum (V) Port | (C4) Straight Φ4mm one-touch pipe fitting |
| Vacuum Pressure Switch | Without lead wire with connector (no need to specify for pressure sensor) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size, material and color for detailsFeature
Compatible with ejector system/vacuum pump systemHigh -speed response: A response 5ms, a true vacant response time 28ms
Energy saving: air consumption reduced by 17%and empty pressure was improved 21%
Small / lightweight: 46g
With a vacuum pressure switch, can be copied up to 10 units at the same time
