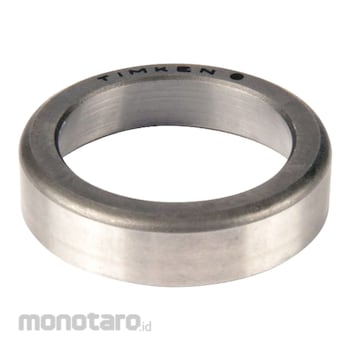

TIMKEN Tapered Roller Bearing Single Cups
#Grup produk P107985372
Spesifikasi
| Db - Cup Backface Backing Diameter (mm) | 87.88 |
|---|---|
| e - ISO Factor | 0.4 |
| Y - ISO Factor | 1.49 |
| Cg - Geometry Factor | 0.0979 |
| Design Units | Imperial |
| D - Cup Outer Diameter (mm) | 97.63 |
| C - Cup Width (mm) | 19.446 |
| Cup Part Number | 28622 |
| Da - Cup Frontface Backing Diameter (mm) | 92.96 |
| r-Cup Backface To Clear Radius (mm) | 0.76 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Warning
- Please confirm the Product Name and product details on Attribute Information- Image on this page only as Representative Image. It will follow the Model Number Information
