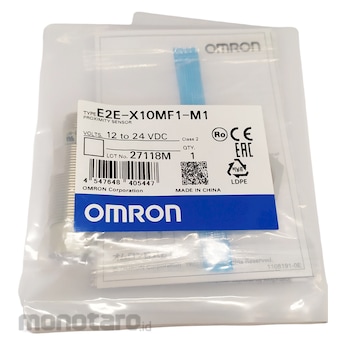

OMRON Standard Type Proximity Sensor E2E DC 3-Wire Type
#Grup produk P107649647
Spesifikasi
| Type | Proximity Sensor |
|---|---|
| Output Type | 3-Wire Direct Current (DC), Positive-Negative-Positive (PNP) |
| Sensor Type | Inductive |
| Range (mm) | 0 to 10 |
| DC Voltage (V) | 12 to 24 |
| Dependencies | XS2FM3 |
| Accessories | Operating instructions |
| Action Mode | No |
| Ambient Humidity (% RH) | During operation and storage: 35 to 95 (no freezing or condensation) |
| Ambient Temperature (°C) | When operating and holding: -40 to +85 (no freezing or condensation) |
| Case Material | Nickel-Plated Brass |
| Code | Standard PVC cord (oil resistant) |
| Connection Method | Direct connector type (M12) |
| Contact Configuration | Normally Open (NO) |
| Control Output | Switching capacity: 200mA or less, residual voltage: 2V or less (load current 100mA, cord length 2m) |
| Current Consumption (mA) | 13 or less |
| Detection Distance (mm) | 10 |
| Detection Target | Magnetic metals (Non-magnetic metals will reduce the sensing distance.) |
| Effect of Temperature | Within the temperature range of -40 to +85°C, within ±15% of the sensing distance at 23°C; within the temperature range of -25 to +70°C, within ±10% of the sensing distance at 23°C |
| Effect of Voltage | Within ±15% of the rated power supply voltage, within ±1% of the sensing distance at the rated power supply voltage. |
| Electrical Connection | M12 4-Pin Connector |
| Head Shape | Screw |
| Hysteresis (%) | 10 or less of detection distance |
| Impact Durability (m/s²) | 1000 10 times each in X, Y, and Z directions |
| Indicator Light | Operation indicator (red) |
| Industry Standards | CENELC |
| Insulation Resistance (MΩ) | 50 or more (at DC500V megger) between all charging parts and the case |
| Material | Case: Brass nickel plated, Detection surface: PBT (polybutylene terephthalate) |
| Mounting | Bracket with 18 mm Mounting Hole or M18x1 Threaded Hole |
| Mounting Hole Size (mm) | 18 |
| Operating Voltage Range (V) | DC10~40 |
| Outer Diameter | M18 |
| Output | PNP |
| Overall Length (mm) | 58 |
| Power Supply Voltage (V) | DC12~24 Ripple (pp) 10% or less |
| Power Type | DC 3-wire system |
| Protection Class | IEC standard IP67 |
| Protection circuit | Reverse connection protection, surge absorption, load short circuit protection |
| Purpose | Mold positioning.\nPallet passing detection.\nDetection of full parts. |
| Response Frequency (Hz) | 200 |
| Self-diagnosis Output | None |
| Sensor Shape | Screw type |
| Setting Distance (mm) | 0-8 |
| Shield | non-shielded |
| Shield Type | Unshielded |
| Size | M18 |
| Spare Parts | M18-MHWS |
| Special Function | High-Quality Short Barrel Threaded Cylindrical Prox Conforms to Standard CENELC Sensing Distance. |
| Standard Detection Object (mm) | Iron 30x30x1 |
| Threaded Length (mm) | 28 |
| Vibration Resistance (Durability) | 10~55Hz Multiple width 1.5mm 2h each in X, Y, Z directions |
| Withstand Voltage (V) | AC1000 50/60Hz 1min Between all live parts and case |
