These interfaces enable the connection of measuring devices with RS-232C data output (such as the Mitutoyo QM-Data 200 or LH-600) with the USB port of a computer.
The interfaces offer the following benefits:
-The ability to connect over 70 different measuring instruments with RS232C output, this includes not only Mitutoyo devices but other brands as well (a list is available upon request).
-The interface converts the different signals from the connected measuring instruments into the same format: keyboard signal (HID).
-The DMX-0-1 USB has one RS-232C input while the DMX-3-2 has two RS-232C inputs and also 3 Digimatic inputs for connecting Mitutoyo handheld measuring devices.
-The DMX-3-2 additionally has a virtual COM-Port (VCP) with MUX-10 or MUX-50 format.
-Mitutoyo measuring instruments with RS232C ouput: KA-Counter Protractor Series 950 EH, EF, EV-Counter Printer DP1-VA Linear Height LH-600 QM-Data 200 Litematic VL-50 Laser Scan Micrometer LSM QM-Height MF-Microscope Series PJ A3,000 Projector PJ H30 Projector ID-H Indicator
-OS compatibility: Microsoft® Windows® 2,000, XP, Vista®, 7, 8, 8.1, 10 (32bit, 64bit)

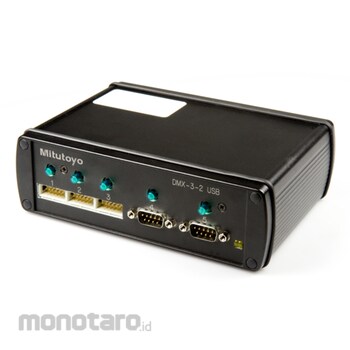

Mitutoyo USB Interface DMX3-2
#Grup produk P107648842
Spesifikasi
| Data Output | USB Virtual COM-Port (VCP), USB Keyboard Signal (HID) |
|---|---|
| Power Supply | 5 V USB |
| Data Input | 3 x Digimatic 2 x RS-232C |
| Footswitch Connector | Yes |
| Interface Cable Connection | USB Type B |
| Baud Rate | 9,600 |
| Output Decimal Mark (HID) | Point or Comma |
| Parity | None |
| Stop Bits | 1 |
| Timer Function (minute) | Interval 0-99 s or 0-99 |
