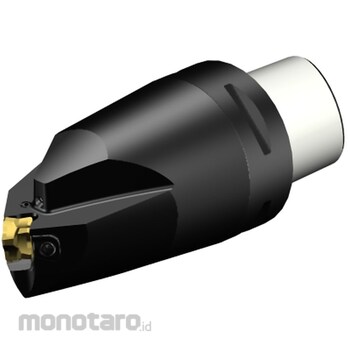

Sandvik CoroTurn 300 Cutting Unit For Turning
#Grup produk P107429566
Spesifikasi
| Tool Cutting Edge Angle (KAPR1) (°) | 95 |
|---|---|
| Coolant entry style code (CNSC) | 3: Axial Concentric and Radial Entry |
| Coolant exit style code (CXSC) | 8: Decentral Focused Exit With Nozzles |
| Coolant Pressure (CP) (bar) | 150 |
| Connection diameter (DCON) (mm) | 63 |
| Functional length (LF) (mm) | 115 |
| Adaptive Interface Machine Direction (ADINTMS) | Coromant Capto (Bolt and Segment Clamping) -Size C6 |
| Body material code (BMC) | Steel |
| Clamping type code (MTP) | P |
| Damping property (DPC) | False |
| Functional width (WF) (mm) | 0.37 |
| Inclination angle (LAMS) (°) | -6.466 |
| Machine side body angle (BAMS) (°) | 45 |
| Master insert identification (MIIDM) | 3-80-101108 |
| Maximum overhang (OHX) (mm) | 115 |
| Minimum bore diameter (DMIN2) (mm) | 250 |
| Orthogonal rake angle (GAMO) (°) | -5.5 |
| Part 2 of Cutting Item Interface Identifiers (CUTINTMASTER) | CoroTurn 300 -3-80-101108 |
| Tool lead angle (PSIR) (°) | -5 |
| Torque (N m) | 4.5 |
