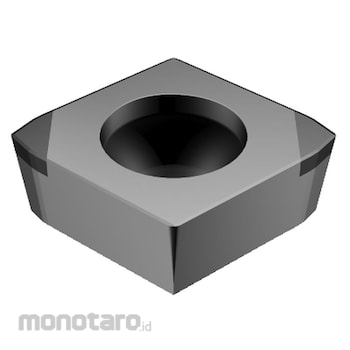

Sandvik CoroTurn 107 Insert For Turning CCGX
#Grup produk P107429362
Sebelum PPN:
Rp7.199.900 - Rp7.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operation Type (CTPT) | Finishing |
|---|---|
| Insert mounting style code (IFS) | 3 |
| Insert size and shape (CUTINTSIZESHAPE) | CC09T3 |
| Cutting edge count (CEDC) | 2 |
| Fixing Hole Diameter (D1) (mm) | 4.4 |
| Insert shape code (SC) | C |
| Chip Breaker Manufacturer Designation (CBMD) | XA |
| Clearance angle major (AN) (°) | 7 |
| Corner Radius Equivalent (REEQ) (mm) | 1.9 |
| Corner chamfer (KCH) (°) | 14 |
| Cutting edge effective length (LE) (mm) | 2.3 |
| Depth of cut maximum (APMX) (mm) | 0.2 |
| Face land angle (GB) (°) | 15 |
| Face land width (BN) (mm) | 0.15 |
| Inscribed circle diameter (IC) (mm) | 9.525 |
| Insert Seat Size Code | 3/8 |
| Insert Thickness (s) (mm) | 3.969 |
| Major cutting edge angle (KRINS) (°) | 95 |
| Material classification level 1 (TMC1ISO) | H |
