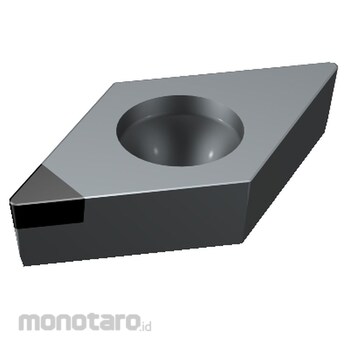

Sandvik CoroTurn 107 Insert For Turning DCMW
#Grup produk P107429089
Spesifikasi
| Operation Type (CTPT) | Finishing |
|---|---|
| Insert mounting style code (IFS) | 3 |
| Insert size and shape (CUTINTSIZESHAPE) | DC11T3 |
| Cutting edge count (CEDC) | 1 |
| Fixing Hole Diameter (D1) (mm) | 4.4 |
| Insert shape code (SC) | D |
| Clearance angle major (AN) (°) | 7 |
| Corner Radius (RE) (mm) | 0.397 |
| Cutting edge effective length (LE) (mm) | 3.65 |
| Face land angle (GB) (°) | 20 |
| Face land width (BN) (mm) | 0.1 |
| Grade (GRADE) | CB20 |
| Hand (HAND) | N |
| Inscribed circle diameter (IC) (mm) | 9.525 |
| Insert Thickness (s) (mm) | 3.969 |
| Material classification level 1 (TMC1ISO) | H |
| Substrate (SUBSTRATE) | BL |
| Wiper edge property (WEP) | False |
