Long life and high fatigue resistance Compact hydraulic piping with a small bending radius A wide range of products suitable for pump rated pressure
JIS K6349-3 (High pressure rubber hose) JIS B8360 (High pressure rubber hose assembly) Compliant product For general hydraulic piping

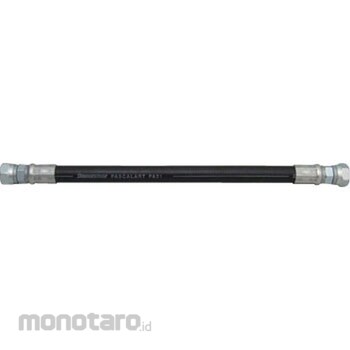

Bridgestone Pass Color PA2104 (Both ends F)
#Grup produk P107026217
Spesifikasi
| Mass (g/m) | Hose / 250 |
|---|---|
| Maximum Operating Pressure (MPa) | 20.5 |
| Recommended Ambient Temperature (°C) | -40 to +70 |
| Approximate Mass (g) | Clasp / 65 |
| Connection Thread | Parallel female thread for pipe (Female 30° sheet) |
| Fitting length (L) (mm) | 56 |
| Fluid Temperature Range (°C) | -40 to +100 |
| Hardware | Both ends bracket F |
| Hose Inner Diameter (Φmm) | 6.3 |
| Hose Outer Diameter (Φmm) | 13.8 |
| Minimum Bursting Pressure (MPa) | 82 |
| Reinforcing Layer | 1W |
| Suitable fluid | Mineral hydraulic oil |
| Thread Size | G1/4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
For general hydraulic pipingUlasan Produk
