FLUKE Cable Locator Set
#Grup produk P106956221
Spesifikasi
| Voltage Measurement Range (V) | 12, 50, 120, 230, 400 (Transmitter) |
|---|---|
| Frequency Range (Hz) | 0-60 (Transmitter) |
| Output Signal (kHz) | 125 (Transmitter) |
| Voltage (V) | Up to 400 AC/DC (Transmitter) |
| Tracing Depth Cable Location (m) | 0-2.5 wall/underground cables (Receiver) |
| Main Voltage Detection (m) | 0-0.4 (Receiver) |
| Batteries | Transmitter : 6x Batteries 1.5V; Receiver : 1x Battery 9V |
| Dimensions (mm) | Transmitter : 190x85x50; Receiver : 250x65x45 |
| Electrical Safety | EN 61010-1 |
| Humidity (without condensation) (%) | Max. 80 relative (Transmitter and Receiver) |
| Operating Altitude (m) | Up to 2000 (Transmitter and Receiver) |
| Operating Temperature (°C) | 0 to 40 (Transmitter and Receiver) |
| Overvoltage Category | Cat. III 300 V |
| Storage Temperature (°C) | -20 to +60 (Transmitter and Receiver) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

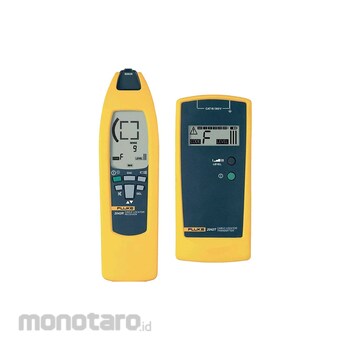

The multipurpose solution to cable locationThe Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.
Feature
- For all applications (live or dead cables) without additional instrumentsSet includes a transmitter and a receiver- Proven digitally coded sender signal guarantees clear signal identification
- Transmitter with LC-display for transmitting level, transmitting code and external voltage
- Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication
- Automatic or manual adjustment of receiving signal sensitivity
- Acoustical receiving signal switchable
- Auto-Power-Off
- Additional torch lamp function for working in dark environments
- Additional transmitters are available for extension of to distinguish between several signals
Safety Conformance
All inputs of the Fluke 2042 is protected to EN61010-1 CAT III 300V rating.
