Multi-vendor inter-controller communication network.
Unit for connecting to FL-net, an Ethernet-based open network.
You can build a multi-vendor network between CJ series PLCs, CNCs, robots, and other companies' PLCs.
Compliant with FL-net, a widely spread standard.
Ethernet-based (using UDP / IP) controller / machine level multi-vendor FA network.
Supports cyclic transmission and message transmission. (FINS communication is also possible for message transmission.)
Using a CJ series PLC as a relay station, interfaces between information Ethernet, OMRON FA network Controller Link, and Fieldbus DeviceNet can be realized.
OMRON SYSMAC CJ Series FL-Net Unit
#Grup produk P106931958
Spesifikasi
| Vibration Resistance | Compliant with JIS 0040, 10 to 57 Hz amplitude 0.075 mm, 57 to 150 Hz acceleration 9.8 m/s2 X/Y/Z directions 80 minutes each (8 minutes sweep time x 10 sweep times = total 80 minutes) |
|---|---|
| Suitable For | (PLC) CJ series |
| Type | 100BASE-TX (can be used as 10BASE-T) |
| Shock Resistance | Compliant with JIS 0041, 147m/s2 X / Y / Z 3 times each |
| Ambient Relative Humidity (RH) | 10 to 90% (non-condensing) |
| Transmission line | Star shape |
| Applicable Standard | cULus (Class II Div2 hazardous area certified product), EC Directive |
| Access Method | (Medium) CSMA / CD |
| Atmosphere | No corrosive gas |
| Current Consumption (mA) | 370 or less (DC5V) |
| Modulation Method | Baseband |
| Mounting Position | CPU unit or expansion unit (including up to 4 units / expansion unit) |
| Operating Ambient Temperature (°C) | 0 to +55 |

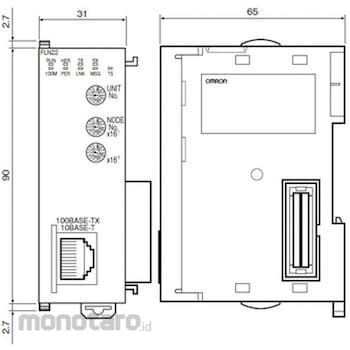

| Outer Dimensions (WxHxD) (mm) | 31x90x65 |
| Storage Temperature (°C) | -20 to +75 |
| Transmission Speed | 100 Mbit / s (100BASE-TX), 10 Mbit / s (10BASE-T) |
| Transmission distance (m) | 100 (distance between hub and node) |
| Unit Type | CJ Series CPU High Function unit |
