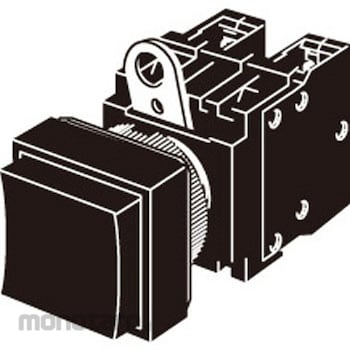

OMRON Pushbutton Switch (Square) (Protruding) (Non-Illuminated) (Round Barrel ɸ22/25) A22
#Grup produk P106919309
Spesifikasi
| Protection Class | IP65 |
|---|---|
| Terminal Shape | Screw terminal |
| Withstand Voltage | Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Button Shape | Square (protruding) |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 500,000 times or more |
| Impact Resistance Durability (m/s²) | Up to 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Ambient Temperature (°C) | -20 to +70 (with no icing or condensation) |
| PTI (Proof Tracking Index) | 175 |
| Shock Resistance Malfunction (m/s²) | 1000 (malfunction 1ms or less) |
| Storage Temperature (°C) | -40 to +70 (with no icing or condensation) |
| Type | Non-illuminated type |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
