Realizes both analog input and analog output functions in one unit
One unit can use analog signals with 4 inputs and 2 outputs.
Analog output: Disconnection detection function, peak hold function, averaging processing function, offset gain adjustment function Analog output: output hold function, offset gain adjustment function Others: Ratio conversion function
OMRON Programmable Controller CS1D Analog I/O Unit
#Grup produk P106916746
Spesifikasi
| Function | Input/average processing, peak hold, disconnection detectionOutput/Output Hold, Ratio Transformation |
|---|---|
| Resolution | 767011 |
| Current Consumption (A) | 5V system: 0.20, 26V system: 0.20 |
| External Connection | Removable terminal block (21 points) |
| Mountable Device | CPU device, extension device |
| Number of Outputs | 4 points |
| Applicable Standard | UL, CSA, NK, Lloyd, EC directive |
| Conversion Speed (ms) | 1/point |
| Data Memory (bit) | (A/D exchange input/output data) 16- binary data, (setting data) 16- binary data |
| Impedance (ohm) | Input voltage:1M or more, input current:250 (fixed), output voltage:0.5 or less |
| Number of Input Points | 4 points |
| Number of Occupied Units | For unit 1 (unit No. 0-95) |

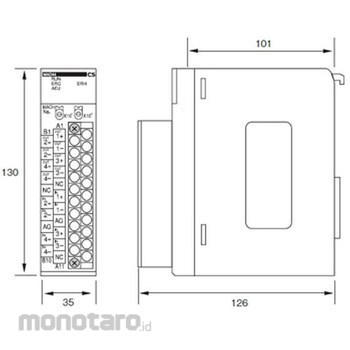

| Outer Dimensions (WxHxD) (mm) | 35x130x126 |
| Output Current (mA) | External output/Max. 12 (per point) |
| Overall accuracy | Input voltage: 23 ± 2°C/± 0.2%, 0 to 55°C/± 0.4%; Input Current: 23 ± 2°C/± 0.4%, 0 to 55°C/± 0.6%; Output voltage: 23 ± 2°C/± 0.3%, 0 to 55°C/± 0.5 |
| Range | Input/1 to 5V, 0 to 5V, 0 to 10V, -10 to 10V, 4 to 20mA; Output/1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V (range selection/input/output 4 points) |
| Rated Input Current (mA) | ± 30 (per point) |
| Rated Input Voltage (V) | ± 15 (per point) |
| Terminal screw | M3 |
