High reliability and low price are realized at the same time by adopting MIL standard compliant product new productivity design as the core of printed circuit board connector.
Compliant with MIL standard (MIL-C-83503).

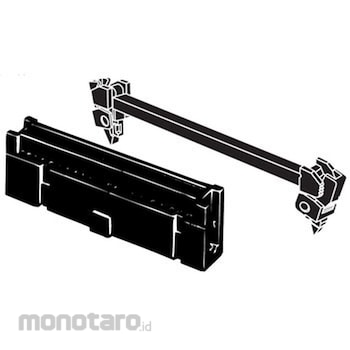

OMRON Flat Cable Connector (General Purpose Type) XG4 MIL Type With Socket Lock
#Grup produk P106898875
Spesifikasi
| Insertion/Removal Durability (times) | 50 |
|---|---|
| Material (Contact Connection Part) | Phosphor bronze |
| Material (Contact Terminal Pressure Connection Part) | Phosphor bronze |
| Cell Spacing (mm) | Polarity guide: 22.86 |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Cover Material | Glass-filled PBT resin (UL94V-0)/Black |
| Insulation Resistance (MΩ) | 10³ or more (at 500 VDC) |
| Material (Housing) | Glass-filled PBT resin (UL94V-0)/Black |
| Material (Strain Relief) | PBT resin with glass (UL94 V-0)/Black |
| Operating Ambient Temperature (°C) | -55 to 105 (no freezing in the bass) |
| Processing (Contact Connection Part) | Nickel base + gold plating (0.15μm) |
| Processing (Contact Terminal Pressure Connection Part) | Nickel base + tin plating (2.0μm) |
| Rated Current (A) | 1 |
| Shape | MIL type socket strain relief (with lock) |
| Single Removal Force (N) | 0.39 or more (with 0.64mm test gauge) |
| Suitable Wire (mm) | For pressure contact: 1.27 pitch flat cable AWG28 (more than seven) |
