Equipped with two counters. Count pulses in 32-bit range.
The maximum input pulse frequency is 4MHz (line driver input x4).
High-speed and accurate control is possible with EtherCAT connection of ultra-high-speed network.
Two types are available: open collector input and line driver input.
Equipped with 2 external latch inputs and 1 reset input.
The node address can be selected from rotary switch setting and tool setting.
In case of rotary switch setting, it can be set easily, and node identification during maintenance is easy.
Maintenance is improved by installing a detachable screw terminal block.

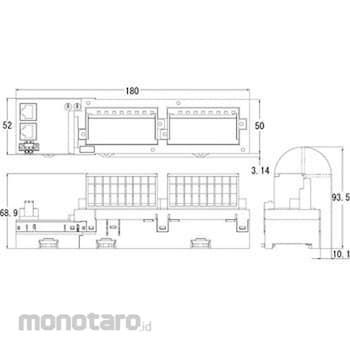

OMRON Encoder Input Terminal 3-Stage Terminal Block Type GX-EC0211/EC0241
#Grup produk P106897797
Spesifikasi
| Type of Sign | DIN 35mm rail mounting |
|---|---|
| Applicable Standard | cULus (Class I Div 2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
| Current (mA) | (ON current/OFF current) Latch input (A/B): 3 or more/1 or less Reset input: 3 or more/1 or less |
| Insulation Resistance (MΩ) | 20 or more (between isolated circuits) |
| Display LED | Green (countable status display), Yellow (input display) |
| Input Signal | Counter A phase / Counter B phase / Counter Z phase / Latch input (A / B) / Counter reset input |
| Noise resistance | Compliant with IEC61000-4-4 2kV (power line) |
| Operating Ambient Temperature (°C) | -10 to 55 |
| Power Supply Voltage (V) | Unit power supply/DC20.4 to 26.4 (DC24V-15 to +10%) I/O power supply/DC20.4 to 26.4 (DC24V-15 to +10%) |
| Response Time | (ON response time/OFF response time) Latch input (A/B): 3 μs or less/3 μs or less Reset input: 15 μs or less/90 μs or less |
| Storage Temperature (°C) | -25 to 65 |
