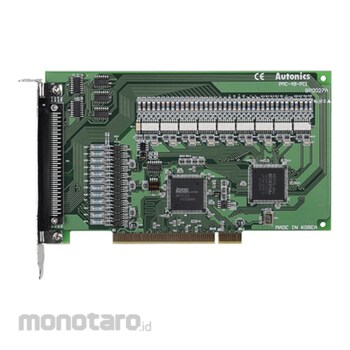

Autonics Motion Controllers PCI Card Type PMC-4B PCI Series
#Grup produk P106666823
Kondisi Barang:
Authorized Partner
Spesifikasi
| 2/3-axis linear interpolation Range | -2,147,483,648 to 2,147,483,647 for each axis |
|---|---|
| 2/3-axis linear interpolation Speed | 1 pps to 4 Mpps |
| Ambient Temperature (°C) | 0 to 45, storage: -10 to 55 |
| Applied Library | C programming language(provided DLL), LabView |
| Circular interpolation Position Accuracy | Max. ±1 LSB (within all interpolation range) |
| Circular Interpolation Range | -2,147,483,648 to 2,147,483,647 for each axis |
| Ambient Humidity (% RH) | Max. ±0.5LSB (within all interpolation range) |
| Circular Interpolation Speed (pps to Mpps) | 1 to 4 |
| Communication Protocol | PCI bus |
| Connection Method | PCI Slot |
| In-Position Setting | Absolute, Incremental |
| Input/Output Contact | X, Y, Z, U-axis: 15/8 (general: 0/4) |
| Interpolations | 2/3-axis linear interpolation, arc interpolation, 2/3-axis bit pattern interpolation, constant interpolation |
| Main Features | S-shaped acceleration/deceleration, Constant linear velocity, Synchronized operation |
| Number of Axes | 4-axis |
| Operation Mode | User programming |
| Power Supply (V) | DC 24 |
| Speed (pps to Mpps) | 1 to 4 |
| Type | Board type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The PMC-4B-PCI programmable motion controllers can be installed on PCs for independent 4-axis control of AC servo motors and stepper motors. Interpolation control is possible for circular, linear, bit pattern, continuous, acceleration, and deceleration drives. The controllers also feature user-friendly functions including auto home search and synchronous operation. Various libraries and help files are available for download.
