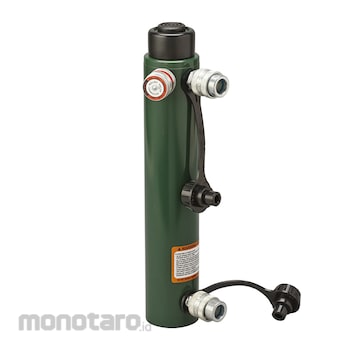

SIMPLEX General Purpose Double Acting Hydraulic Cylinder
#Grup produk P106619445
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 266.9 |
| Maximum Cylinder Capacity Retract (kN) | 111.2 |
| Capacity (kN) | 266.9 |
| Stroke (mm) | 368.3 |
| Collapsed Height A (mm) | 549.1 |
| Extended Height B (mm) | 917.7 |
| Return Type | Double-Acting Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm²) | 42 |
| Cylinder Effective Area Retract (cm²) | 19.4 |
| Oil Capacity Required (cm³) | 1491.2 |
| Ram Bore Diameter (mm) | 72.9 |
| Pressure at Capacity (bar) | 638 |
