Cole Parmer Eight Point Alarm Annunciator Four inputs
#Grup produk P106261202
Spesifikasi
| DIN Size (inch) | 1/8 |
|---|---|
| Input Type | Switches (NO/NC); open collector transistor (NPN) |
| Display Type | LED indicators |
| Maximum Power VDC (VDC) | 36 |
| Minimum Power VDC (VDC) | 12 |
| Control Output 1 | Relay: Form C contact; SPDT; 3A at 30vDC or 250vAC (resistive load); 1/14-hp at 125/250vAC (inductive load) |
| Control Output 2 | Relay: Form C contact; SPDT; 3A at 30vDC or 250vAC (resistive load); 1/14-hp at 125/250vAC (inductive load) |
| Enclosure | NEMA 4X |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°F) | -40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

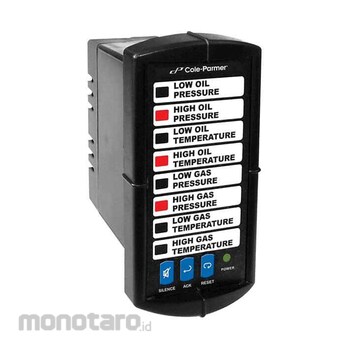

Compact 1/8-DIN annunciators are perfect for replacing stand-alone lights! They can be programmed for all the common ISA alarm sequences and accept switch, transistor, and logic level inputs. The NEMA 4X front panel, wide operating temperature range, and sunlight readable indicators make these units well suited for outdoor applications. Front-panel buttons and screw terminal connectors are provided for Silence, Acknowledge, and Reset functions. A built-in 85 dB horn provides audible indication of alarm condition and up to two relays can be used to control external devices such as beacons or horns. All programmed settings are stored in nonvolatile memory if power is lost.
