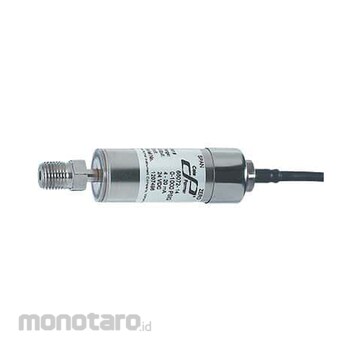

Cole Parmer Compound Pressure Transducer
#Grup produk P106257607
Spesifikasi
| Accuracy (%) | ±0.25 (full-scale) |
|---|---|
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 260 |
| Minimum Temperature (°C) | -40 |
| Maximum Temperature (°C) | 65 |
| Battery Type | 9 to 30 VDC |
| Diameter (cm) | 2.5 |
| Diameter (inch) | 1 |
| Electrical Connections | 6-ft (1.8-m) cable |
| Length (cm) | 11.3 |
| Length (inch) | 4 7/16 |
| Maximum Vacuum (inch Hg) | 30 |
| Media Compatibility | Gases and liquids compatible with wetted materials |
| Output (mA) | 4 to 20 |
| Process Connection (inch) | 1/4 NPT(M) |
| Unit of Measurement | \"Hg, psi |
| Wetted Materials | 316 SS |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Rotate cover to access zero and span potentiometers. Transmitters with 4 to 20 mA output have red (positive power) and black (output) wires. Transmitters with 0.2 to 5.2 V output have red (positive power), green (output), and black (common) wires.
