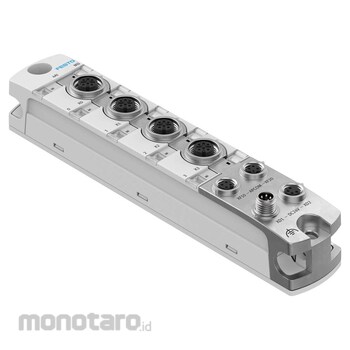

FESTO Analogue Input Module CPX-AP-I Series
#Grup produk P106155813
Spesifikasi
| Reverse Polarity Protection | yes |
|---|---|
| Operating Error Limit Related to the Ambient Temperature Range (%) | ±0.15 (for Voltage); ±0.15 (for Electrical Current); ±0.35 (for resistor); ±0.9 (for Temperature) |
| Diagnose per Internal Communication | Wire break; Module error; Short Circuit/Overloas in Sensor Supply; Parameter error; Parameterization error; Overloas at analog Inputs; Upper limit Value violated; UnderFlow/overFlow; Lower limit Value not complied with |
| Fuse Protection Inputs (Short Circuit) | Internal electronic fuse per Module |
| Note regarding Operating Voltage | SELV/PELV fixed Power supplies required; Note Voltage drop |
| Basic Error Limit (%) | '±0.1 (for Voltage); ±0.1 (for Electrical Current); ±0.2 (for resistor); ±0.4 (for Temperature) at 25°C |
| Diagnostics via LED | Diagnostics per Module, Status per Channel |
| Dimensions (WxLxH) (mm) | 30x170x35 |
| Maximum Power Supply (A) | 2 x 4 (externl fuse required) |
| Maximum Residual Current of Inputs per Module (A) | 1 |
| Measured Variable | Voltage; Current; Temperature; Resistor |
| No. of Inputs | 4 |
| Nominal Operating Voltage DC for Electronics/Sensors (V) | 24 |
| Repetition Accuracy (%) | ±0.025 (at 25 °C) |
