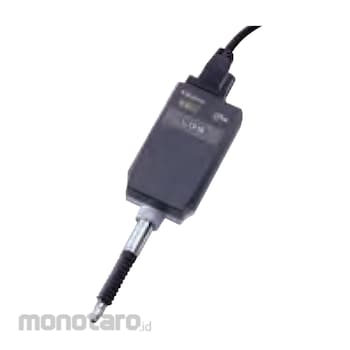

Mitutoyo Linear Gage

- Excellent vibration/shock resistance due to the design of the spindle guide.
- Sliding durability improved to remain serviceable for at least 15 million cycles (in house testing).
- Shock resistance, 100 G / 11 ms (IEC 60068-2-27)
- The LGF-Z series, which is equipped with a reference point mark on the linear encoder (refer to page G-9), and includes a 0.1 µm resolution type (refer to page G-8) is also available.

Technical Data :
- Measuring range (mm) : 10 mm (0.4 in)
- Resolution (µm) : 1
- Measuring accuracy (20 °C) (µm) L=arbitrary measuring length (mm) : (1.5+L/50)"
- Quantizing error : ±1 count
- Contact point downwards : 1.2 N or less
- Contact point horizontal : 1.1 N or less
- Contact point upwards : 1.0 N or less
- Position detection method : Photoelectric linear encoder
- Maximum response speed : 1500 mm/s
- Output signal : 90° phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 1000 ns for 5 µm model, 500 ns for 1 µm model, 250 ns for 0.5 µm model"
- Output signal pitch : 4 µm
- Contact point : ø3 mm carbide tipped (fixing screw: M2.5 (P=0.45)×5), standard contact point: 901312
- Stem : ø8 mm
- Bearing : Linear ball bearing
- Output cable length : 2 m (directly from casing)
- Connector : Plug: RM12BPE-6PH (HIROSE), Compatible receptacle: RM12BRD-6S (HIROSE)
- Operating temperature (humidity) ranges : 0 to 40 °C (RH 20 to 80 %, non-condensing)
- Storage temperature (humidity) ranges : -10 to 60 °C (RH 20 to 80 %, non-condensing)
