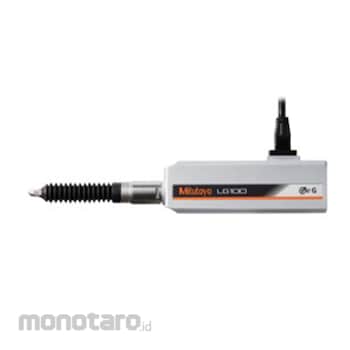

Mitutoyo LGF-125L-B LINEAR GAGE 25MM
#Grup produk P106104882
Spesifikasi
| Resolution (inch) | 0.000050 |
|---|---|
| Measuring Range (inch) | 1 |
| Stem (mm) | ø15 |
| Maximum Response Speed (mm/s) | 1500 |
| Small Range Accuracy (µm) | 0.5 (Arbitrary 20 range) |
| Measurement Accuracy with Arbitrary Measuring Length (mm) | '1.5 + L/50µm at 20°C |
| Measuring Force Contact Point Downwards (N) | 4.6 or less |
| Measuring Force Contact Point Horizontal (N) | 4.3 or less |
| Measuring Force Contact Point Upwards (N) | 4.0 or less |
| Minimum Edge Intervals (ns) | 500 (2MHz) |
| Operating Temperature and Humidity Range (°C) | 0 to 50 (RH 20 to 80%, non-condensing) |
| Output Signal Pitch (µm) | 4 |
| Reference Mark Position (Phase-Z) (mm) | Approx. 5 from contact point tip (lowest rest point) |
| Reference Mark Repeatability Sigma (µm) | 'σ ≤ 0.5 (at a constant reference point passing speed less than 300mm/s in the same direction); at 20°C |
| Repeatability 2 Sigma (µm) | '0.3 at 20°C |
| Storage Temperature/Humidity Range (°C) | -10 to 60 (RH 20 to 80%, non-condensing) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ideal for integration into harsh environments such as automation applications
Feature
- Excellent vibration/shock resistance due to the design of the spindle guide. - Sliding durability improved to remain serviceable for at least 15 million cycles (in_x0002_house testing).
- Shock resistance, 100 G / 11 ms (IEC 60068-2-27)
- The LGF-Z series, which is equipped with a reference point mark on the linear encoder (refer to page G-9), and includes a 0.1 µm resolution type (refer to page G-8) is also available.
Technical Data :
- Measuring range (mm) : 25 (1inch)
- Resolution (µm) : 1
- Measuring accuracy (20 °C) (µm) L=arbitrary measuring length (mm) : (1.5+L/50)"
- Quantizing error : ±1 count
- Contact point downwards : 4.6 N or less
- Contact point horizontal : 4.3 N or less
- Contact point upwards : 4.0 N or less
- Position detection method : Photoelectric linear encoder
- Maximum response speed : 1500 mm/s
- Output signal : 90° phase difference, differential square wave (RS- 422A equivalent), minimum edge intervals: 1000 ns for 5 µm model, 500 ns for 1 µm model, 250 ns for 0.5 µm model"
- Output signal pitch : 4 µm
- Contact point : ø3 mm carbide tipped (fixing screw: M2.5 (P=0.45)×5), standard contact point: 901312
- Stem : ø15 mm
- Bearing : Linear ball bearing
- Output cable length : 2 m (directly from casing)
- Connector : Plug: RM12BPE- 6PH (HIROSE), Compatible receptacle: RM12BRD- 6S (HIROSE)
- Operating temperature (humidity) ranges : 0 to 40 °C (RH 20 to 80 %, non- condensing)
- Storage temperature (humidity) ranges : - 10 to 60 °C (RH 20 to 80 %, non- condensing)
