Universal Wheel Dresser Adaptable on surface grinder and universal tool
grinder for dressing grinding wheels into various cross sections of flat or
curved shapes.
To dress convex arc surface: H= L+R
To dress concave arc surface: H= L-R
H.-Distance between outer generation lines of two location pins.
R.- Radius of the arc surface to be dressed.
L. -Distance from tip of diamond cutter to base plate

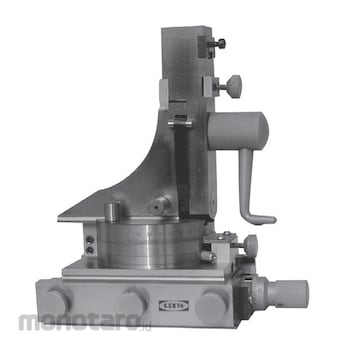

KENTA Universal Wheel Dresser
#Grup produk P106029466
Spesifikasi
| Measuring Quasi-Pin Diameter (mm) | 10 (0.4inch) |
|---|---|
| Max. Swing Distance of Diamond Cutter (mm) | +/-20 (+/-0.8inch) |
| Reading Accuracy or Turret Index (inch) | 5 |
| Max. Translation of Feed (mm) | 20 (0.8inch) |
| Feed per Division of Handle Scale (mm) | 0.02 |
| Center Height (mm) | 165 (6-2/5inch) |
| Maximum Wheel Diameter (mm) | 200 (8inch) |
