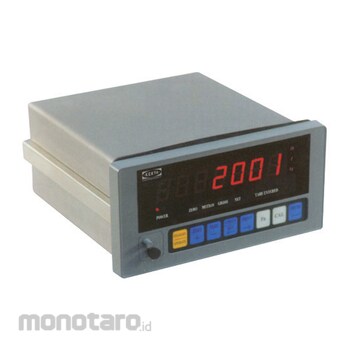

KENTA Automatic Control of The Display

Product characteristics:
New circuit design, enhanced anti-jamming performance.
Large LED display (7-bit 20mm high), suitable for use in dark places.
High-performance A / D converter with 0.3μVD high sensitivity, sampling speed (up to 120 times per second), measuring range -1 ~ 20mV / V.
In addition to the general 2-point correction, can be used for 5-point linear correction.
With a second order digital filter, can effectively inhibit the vibration generated by the site environment.
With the function of animal scales, display fast and stable.
With simple weight comparison function (HI, OK, LO signal output).
Using AC power technology, AC 100V ~ 240V power supply can be used directly, without additional settings.
Special structural design, maintenance more convenient.
Optional:
RS-422 / RS485 output interface.
Parallel BCD Output interface, the output has O.C and TTL two ways.
Parallel Printer Output
Interface / RS-232C&Current Loop.
RS-232&Current Loop&Data Clock Output.
Control I / O (2 Input / 4 Output).
Analog output interface (4 ~ 20mA, 0 ~ 10V).
