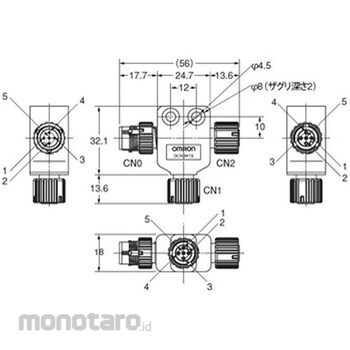

OMRON Shield Type for Environment Protection of DeviceNet Peripheral Devices (T-Branch Connector)
#Grup produk P105952787
Spesifikasi
| Contact Resistance (ohm) | Connector / 40 mA or less (DC 20 mV or less, 100 mA or less) |
|---|---|
| Vibration | 10 single vibration having an amplitude of smaller one of the ~ 500 Hz total amplitude 1.52mm or 100m/s2,</sup> 1μs or more current without interrupting |
| Rated Voltage (V) | DC125 |
| Insulation Resistance (MΩ) | 1000 or more (at 500 VDC) |
| Rated Current (A) | 3 |
| Lock Operation Force (N ・ M) | 0.1 to 0.25 |
| Insertion / Removal Durability (Times) | 50 |
| Lock Strength | (Pull) 100N/15 seconds, (Rotation) 1Nm/15s |
| Operating Temperature Range (°С) | -20 to +65 |
| Protection Class | IEC IP67 |
| Storage Temperature Range (°C) | -25 to +70 |
| Type | For environment Resistance (for thin Wire M12) |
| Withstand Voltage (V/minute) | AC1500 (leakage current 1mA or less) |
