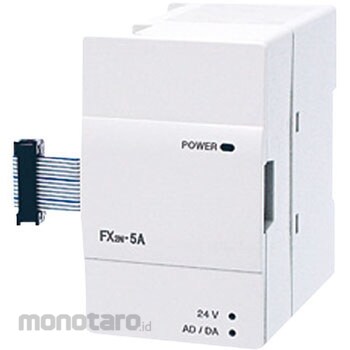

Mitsubishi Electric Analog Input/Output/Temperature Sensor Input Block
#Grup produk P105897851
Spesifikasi
| Conversion speed | 50 micro s x number of channels used (5 ms when using digital filter x number of channels used) |
|---|---|
| Applicable to | FX3UC (FX3UC-32MT-LT supported from Ver.1.30) PLC |
| Power Supply | DC5V 50mA (sequencer internal power supply). DC24V+/-10% 80mA/DC24V (external power supply from the power connector) |
| Analog input range | Voltage input/DC-10 to 10V (input resistance 200k ohm). Current input/DC-20 to 20mA, 4 to 20mA (Input resistance 250k ohm) |
| Effective digital output | Voltage input/15bit binary + sign 1bit. Current input/14bit binary + code 1bit |
| Insulation Method | A photo coupler isolates the analog input section from the sequencer. The transformer isolates the power supply and analog input. Non-isolated between each channel |
| I/O occupied points | Occupies 8 inputs or outputs of the sequencer. (You can count either input or output) |
| Resolution | Voltage input/0.32mV (20V x 1/64000), 2.50mV (20V x 1/8000). Current input/1.25microA (40mAx1/32000), 5.00microA (40mAx1/8000) |
